Indoor 3:1 epoxy doming systems for labels, 3D stickers, badges and dimensional products. Compare 306AB soft, 6015-8AB medium-soft and 7016AB hard formula directions before production testing.
Colorless transparent cured layer, smooth high-gloss surface, creates sharp 3D raised effect, perfectly upgrades flat labels to dimensional products.
Moderate viscosity, excellent self-leveling property, natural defoaming, no edge lifting.
Start with the required cured character and production behavior. HSFECL currently promotes 306AB, 6015-8AB and 7016AB as the main epoxy doming references for sample evaluation.
SOFT 3:1 FORMULA
306AB Soft Epoxy Doming Resin
For labels, nameplates, badges and coated craft surfaces that need a softer cured layer, clear appearance, good flexibility and cost-conscious selection.
306AB
Key buyer considerations
Soft cured character
Lower-viscosity flow
Good flexibility after curing
Manual and machine doming
Reference from supplied 306AB data: 3:1 by weight, about 60 minutes usable time at 25°C with 100 g mixed material, and room-temperature surface dry about 8-10 hours. Actual timing depends on temperature, batch size and production conditions.
For repeat doming applications requiring moderate viscosity, transparent appearance, good leveling, bubble control and a medium-soft flexible cured layer.
6015-8AB
Key buyer considerations
Medium-soft cured character
Moderate viscosity
Self-leveling appearance
Anti-yellowing positioning
Reference from supplied 6015-8AB data: 3:1 by weight, about 50 minutes usable time at 25°C with 100 g mixed material, Shore A 72±2 and room-temperature surface dry about 7-9 hours. Confirm under actual production conditions.
For rigid badges, labels, nameplates and coated craft surfaces requiring a hard, high-gloss, flat and transparent cured surface.
7016AB
Key buyer considerations
Hard cured surface
Lower-viscosity flow
Excellent self-leveling
Gloss and anti-yellowing positioning
Reference from supplied 7016AB data: 3:1 by weight, about 40 minutes usable time at 25°C with 100 g mixed material, Shore D 80±2, room-temperature surface dry about 7-8 hours and full cure about 30 hours. Actual results depend on production conditions.
2:1 epoxy remains available as an optional formula direction only when a project specifically requires it. It is not the primary comparison basis for this product page.
TYPICAL APPLICATIONS
Indoor Doming Applications
This epoxy product range is intended for indoor dimensional doming applications where clarity, surface shape and cured character must be matched to the finished product.

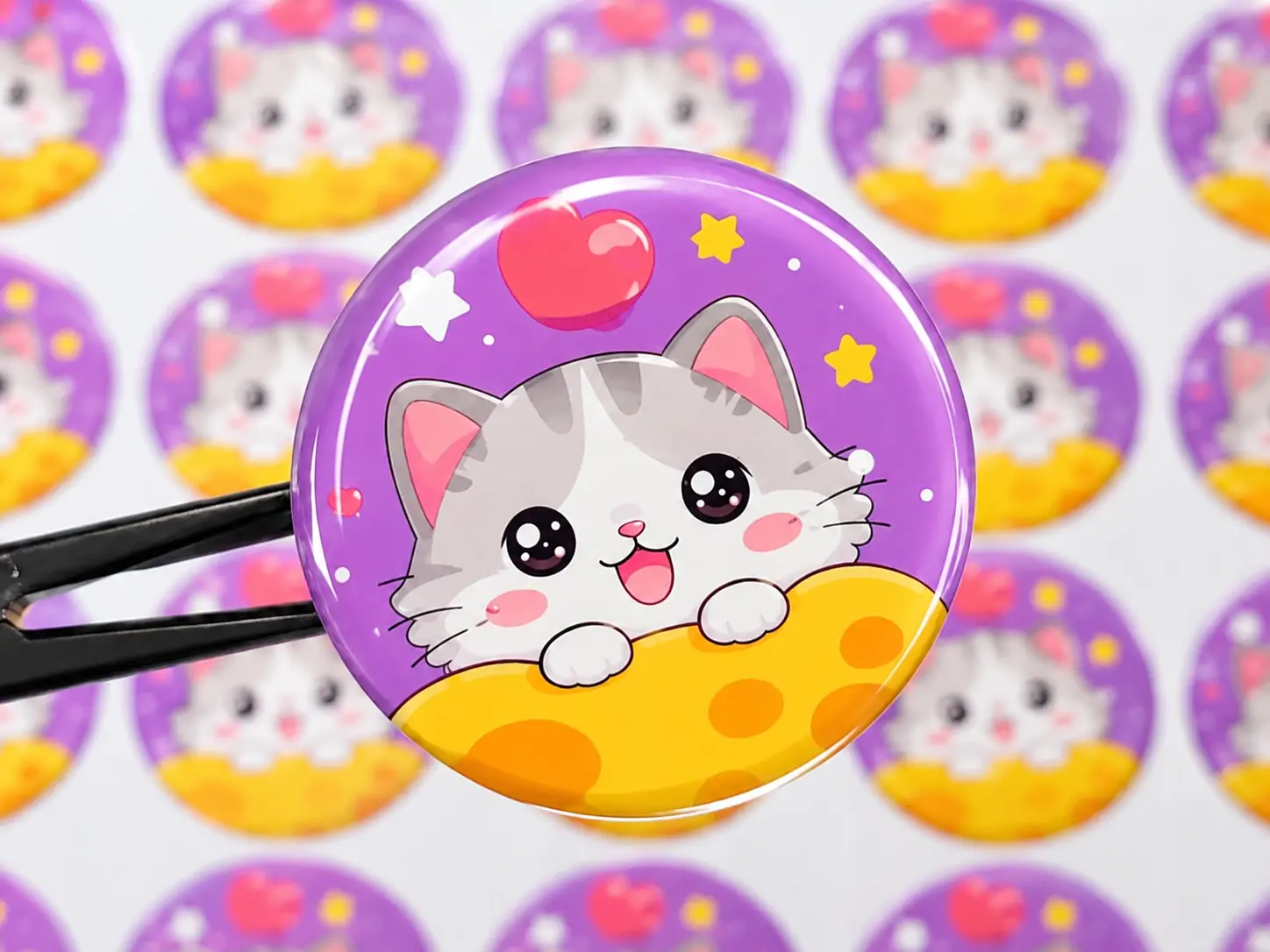

Domed Labels
3D Stickers
Rigid Badges
Nameplates
Relief Crafts
Promotional Products
This product range is not intended for river-table deep pouring, large-volume casting or heavy-duty flooring applications.
The mixed resin can form a smooth raised dome when viscosity, dispensing volume and substrate conditions are properly controlled.
03
Bubble Release
Formula and process selection support natural bubble release, but mixing method and production conditions still affect final appearance.
04
Glossy Dome Finish
Creates a smooth high-gloss dimensional surface for labels, badges and decorative products.
05
Cured Character Options
Formula directions range from soft and medium-soft to medium-hard and hard.
06
Dispensing Compatibility
Selected formulas may be evaluated for manual, semi-automatic and automatic dispensing workflows.
TECHNICAL DATA
Select a Formula to View Technical Data
Each epoxy doming formula has its own viscosity, working time, curing reference and cured character. Select the model you want to compare before requesting the corresponding TDS.
SOFT 3:1 FORMULA
306AB Soft Epoxy Doming Resin
A softer 3:1 epoxy doming formula for labels, nameplates, badges and coated craft surfaces requiring flexibility and a clear glossy finish.
Property
Reference Information
Product Name
Transparent 3:1 soft epoxy doming resin
Model
306AB
Mix Ratio
100:33 by weight, approximately 3:1
Appearance
Part A transparent liquid; Part B transparent liquid
Viscosity at 25°C
Part A: 450-600 mPa.s; Part B: 100-150 mPa.s
Usable Time
About 60 minutes at 25°C with 100 g mixed material
Surface Dry
About 8-10 hours at room temperature
Heat Cure Reference
About 3 hours at 60°C
Cured Character
Soft cured feel with good flexibility
MEDIUM-SOFT 3:1 FORMULA
6015-8AB Medium-Soft Epoxy Doming Resin
A medium-soft 3:1 epoxy doming formula with moderate viscosity, transparent appearance, leveling behavior and anti-yellowing positioning.
Property
Reference Information
Product Name
Transparent 3:1 medium-soft epoxy doming resin
Model
6015-8AB
Mix Ratio
100:33 by weight, approximately 3:1
Appearance
Part A blue transparent liquid; Part B transparent liquid
Viscosity at 25°C
Part A: 400-500 mPa.s; Part B: 100-150 mPa.s
Usable Time
About 50 minutes at 25°C with 100 g mixed material
Surface Dry
About 7-9 hours at room temperature
Heat Cure Reference
About 2.5 hours at 60°C
Hardness
Shore A 72±2 reference
HARD 3:1 FORMULA
7016AB Hard Epoxy Doming Resin
A hard 3:1 epoxy doming formula for rigid badges, labels, nameplates and coated craft surfaces requiring a hard high-gloss cured surface.
Property
Reference Information
Product Name
Transparent 3:1 hard epoxy doming resin
Model
7016AB
Mix Ratio
100:33 by weight, approximately 3:1
Appearance
Part A transparent liquid; Part B transparent liquid
Viscosity at 25°C
Part A: 1000-1500 mPa.s; Part B: 50-100 mPa.s
Usable Time
About 40 minutes at 25°C with 100 g mixed material
Surface Dry
About 7-8 hours at room temperature
Full Cure
About 30 hours at room temperature, or about 2 hours at 60°C
Hardness
Shore D 80±2 reference
Values above are reference data from supplied product documents. Actual working time, curing behavior and final performance depend on material temperature, batch size, substrate and production conditions.
Can’t find the cured character, viscosity, working time or performance target you need? HSFECL can review selected custom epoxy doming requirements based on your substrate, dispensing process and order plan.
Packaging reference for selected epoxy doming resin orders: 5 kg/can is commonly used when no custom package size is specified. For 3:1 systems, a 20 kg carton reference may use a carton size of 39 x 26.5 x 32 cm. Final packaging should be confirmed by formula, quantity and buyer requirements.
Property
Reference Information
Appearance
Clear two-component resin system
Mix Ratio
3:1 for the main 306AB, 6015-8AB and 7016AB formulas; 2:1 may be discussed only as an optional project direction.
Cured Character
306AB soft, 6015-8AB medium-soft and 7016AB hard
Surface Dry
Formula dependent; supplied references include 306AB about 8-10 hours, 6015-8AB about 7-9 hours and 7016AB about 7-8 hours at room temperature.
Full Cure
Formula dependent; supplied 7016AB reference is about 30 hours at room temperature or about 2 hours at 60°C.
Viscosity
Formula dependent; supplied references range from lower to moderate viscosity across 306AB, 6015-8AB and 7016AB.
Hardness
Formula dependent; supplied references include 6015-8AB Shore A 72±2 and 7016AB Shore D 80±2.
Recommended Use
Indoor dimensional doming
Production Method
Manual, semi-automatic or automatic dispensing after compatibility testing
Available Packaging
Confirm by formula and purchasing requirement
Storage
Refer to product label and corresponding TDS
SAMPLE & PRODUCTION TEST
Confirm the Formula Before Bulk Purchasing
01
Share the Application
Tell us the finished product, substrate, use environment and required cured character.
02
Match the Formula Direction
Compare 306AB soft, 6015-8AB medium-soft and 7016AB hard 3:1 formula references before sample testing.
03
Test Under Actual Conditions
Evaluate flow, dome shape, bubble release, adhesion and cured character using the real production process.
04
Confirm Bulk Supply
Confirm the selected formula, packaging and repeat purchasing requirement.
Which 3:1 epoxy doming formula should I start with?
Start with the cured character and production requirement. HSFECL currently promotes 306AB for soft doming, 6015-8AB for medium-soft doming and 7016AB for hard doming. A 2:1 direction can be discussed only when a project specifically requires it.
Can this resin be used for outdoor labels?
This epoxy range is positioned primarily for indoor doming. For stronger outdoor UV and yellowing resistance, compare the available polyurethane doming systems.View Outdoor PU Doming Resin
Can it be used with an automatic dispensing machine?
Selected formulas may be evaluated for automatic or semi-automatic dispensing. Compatibility depends on the machine ratio, viscosity, metering system, mixing head and production parameters.
Which substrates can be used?
Selected formulas may be evaluated on PVC, PET, acrylic and metal applications. Actual adhesion depends on surface condition, printing ink, coating and pretreatment, so substrate testing is required.
Can hardness or cure speed be adjusted?
Different existing formulas already provide different cured characters and curing behavior. For selected projects, formulation adjustment may also be discussed after reviewing the production requirement.
Is this product suitable for river tables or deep pouring?
No. This product range is designed for dimensional surface doming and is not intended as a river-table or large-volume deep-pour resin system.
Can I request samples and technical data?
Yes. Share the application, target cured character and production method so the appropriate sample and technical data can be matched.
PRODUCT SAMPLE & FORMULA MATCHING
Tell Us Your Epoxy Doming Requirement
Share your product and target cured character. Our team will use the information to match a suitable formula direction for sample evaluation.
